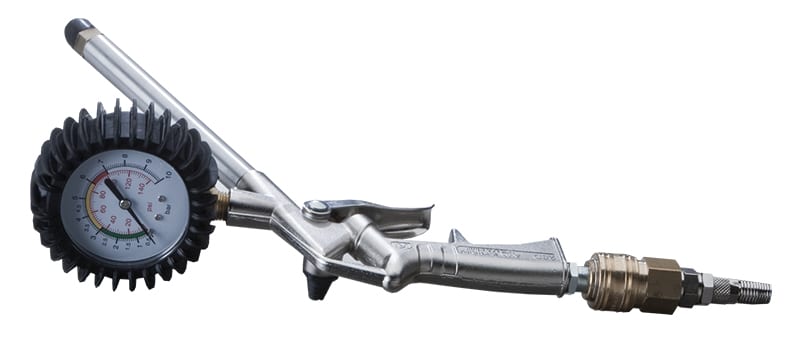

Filling pistol with manometer and equipment
| Article | Article Nr. | Unit | Typ |
|---|---|---|---|
| 01 Filling pistol with Manometer | 01.01020000.01 | piece | FPL-V-H |
| 02 Filling pistol with Manometer | 01.01010000.01 | piece | FPL-V-A |
| 03 Filling pistol with Mano. IT H-Valve | 01.01020001.01 | piece | FPL-V-H-IG |
| 04 Filling nozzle for filling pistol | 01.01020001.00 | piece | FST-H |
| 05 Filling nozzle for filling pistol | 01.01010000.11 | piece | FVT-A |
| 06 Filling nozzle for filling pistol | 01.01020001.20 | piece | FST-H-IG |

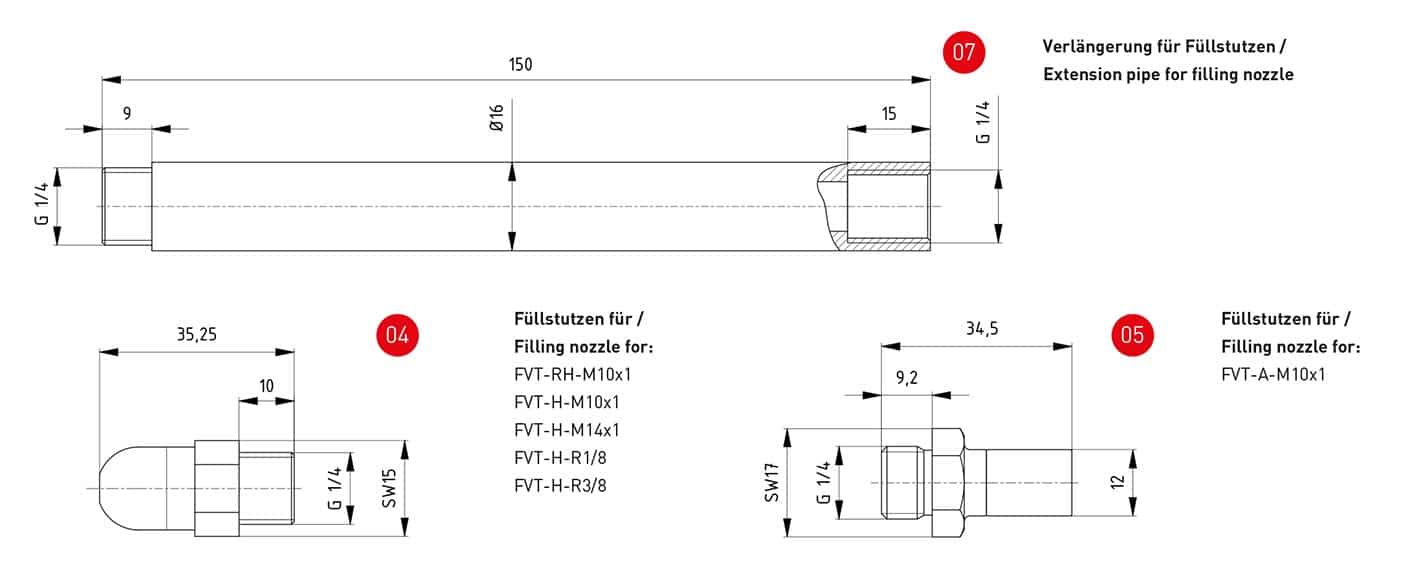

| 07 Extension for filling pistol | 01.01000000.12 | piece | VFF-G¼ |
| 08 Spiral hose with quick lock | 01.01010000.03 | piece | SSV |

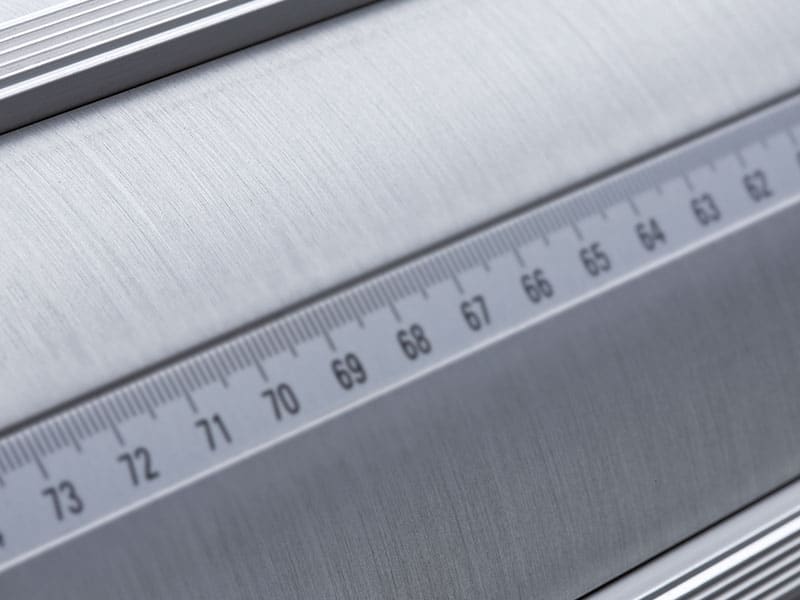

SPARE PARTS FOR THE CLAMPING SHAFT WITH ALUMINIUM PROFILE (PSW-F)
| Pos. | Description |
|---|---|
| 01 | body |
| 02 | journal |
| 03 | journal valveside |
| 04 | clamping bar |
| 05 | retaining spring |
| 06 | air distributor |
| 07 | clamping piece – bottom part |
| 08 | clamping piece – bottom part valveside |
| 09 | clamping piece – top part |
| 10 | threaded pin DIN 914 – M8 x 20 |
| 11 | threaded pin DIN 913 – M6 x 8 |
| 12 | locking screw M10x1 |
| 13 | o-ring |
| 14 | flat tube |
| 15 | protection tape |
| 16 | valve |
| Pos. | Article | Article no. | Unit |
|---|---|---|---|
| 1 | Clamping bar Aluminium | 01.01020000.06 | m |
| 2 | Clamping bar Rubber | 01.01020000.07 | m |
| 3 | Clamping bar Rubber/Steel | 01.01020000.21 | m |
| 4 | Clamping bar friction S-G | 01.01020000.12 | m |
| Clamping bar friction S-G high | 01.01020000.14 | m | |
| Retaining spring for Rubber/Steel bar | 01.01020000.19 | piece | |
| Retaining spring | 01.01020000.15 | piece | |
| Air distributor | 01.01020000.08 | piece | |
| clamping piece – bottom part | 01.01020000.13 | piece | |
| clamping piece – bottom part valve side | 01.01020000.11 | piece | |
| Clamping piece – top part | 01.01020000.10 | piece | |
| Rubber flat tube | 01.01020000.09 | m | |
| Protection tape | 01.01020000.03 | m |
| Pos. | Article | Article no. | Unit |
|---|---|---|---|
| 1 | E-FVT-H-G3/8“ | 01.01010000.25 | piece |
| 2 | E-FVT-H-M14*1 | 01.01010000.23 | piece |
| 3 | E-FVT-RH-M10*1 | 01.01020000.22 | piece |
| 3 | E-FVT-RH-1/8“ | 01.01020000.02 | piece |
| 4 | E-FVT-H-M10*1 | 01.01010000.22 | piece |
| 4 | E-FVT-H-R 1/8“ | 01.01010000.24 | piece |
| 5 | E-FVT-A-M10*1 | 01.01010000.02-2 | piece |
| 6 | E-FVT-H-M8*1 | 01.01010000.29 | piece |
| 7 | E-FVT-RH-M7*1 | 01.01020000.24 | piece |
SPARE PARTS FOR THE HIGH-POWER CLAMPING SHAFTS (PSW-Z)

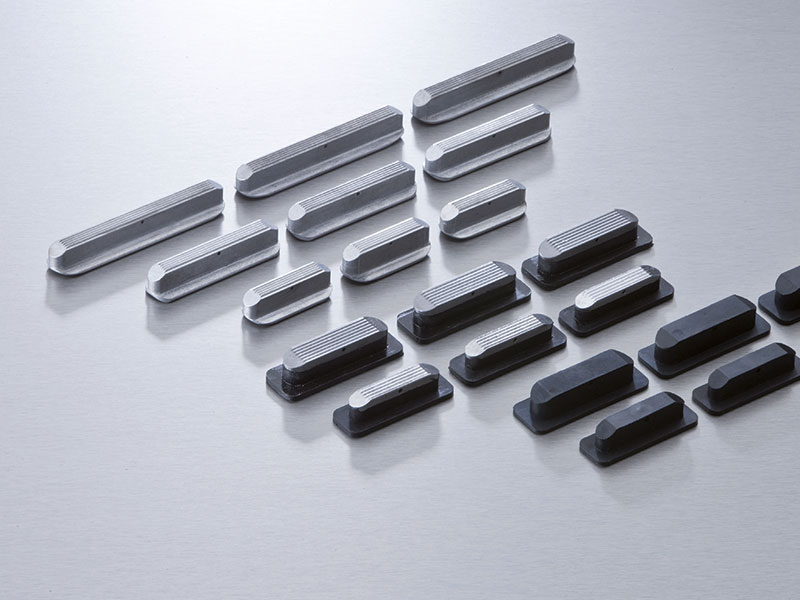

| Pos. | Description |
|---|---|
| 01 | body |
| 02 | rubber tube |
| 03 | support tube |
| 04 | expansion element |
| 05 | valve |
| 06 | journal |
| 07 | journal / air inlet |
| 08 | clamping ring |
| 09 | nut |
| 10 | o-ring |
| 11 | clamping piston |
| 12 | flat head screw DIN 7991 – M10 x 16 |
| 13 | flat head screw DIN 7991 – M10 x 12 |
| 14 | clamping piston / air passage |
| Pos. | Article | Material | Unit |
|---|---|---|---|
| 1 | E-BDS-11-50-G | Rubber | piece |
| 2 | E-BDS-15-50-G | Rubber | piece |
| 3 | E-BDS-16-50-G | Rubber | piece |
| 4 | E-BDS-16-D58-G | Rubber | piece |
| 5 | E-BDS-15-50-A | Aluminium | piece |
| 6 | E-BDS-15-75-A | Aluminium | piece |
| 7 | E-BDS-15-100-A | Aluminium | piece |
| 8 | E-BDS-16-50-A | Aluminium | piece |
| 9 | E-BDS-16-75-A | Aluminium | piece |
| 10 | E-BDS-16-100-A | Aluminium | piece |
| 11 | E-BDS-15-50-G-ST | Rubber / Steel | piece |
| 12 | E-BDS-16-50-G-ST | Rubber / Steel | piece |
| 13 | E-BDS-16-D58-G-ST | Rubber / Steel | piece |
| Pos. | Article | Nr. | Unit |
|---|---|---|---|
| 1 | E-FVT-H-G3/8“ | 01.01010000.25 | piece |
| 2 | E-FVT-H-M14*1 | 01.01010000.23 | piece |
| 3 | E-FVT-RH-M10*1 | 01.01020000.22 | piece |
| 3 | E-FVT-RH-1/8“ | 01.01020000.02 | piece |
| 4 | E-FVT-H-M10*1 | 01.01010000.22 | piece |
| 4 | E-FVT-H-R 1/8“ | 01.01010000.24 | piece |
| 5 | E-FVT-A-M10*1 | 01.01010000.02-2 | piece |
| 6 | E-FVT-H-M8*1 | 01.01010000.29 | piece |
| 7 | E-FVT-RH-M7*1 | 01.01020000.24 | piece |
