Air shafts from IBD Wickeltechnik

With more than 25 years of experience in all areas of modern winding technology, we are the first point of contact in Germany for pneumatic and pneumo-mechanical air shafts. We offer expansion shafts for every application, friction shafts or adapters. Everything from one source and everything „Made in Germany“ – standard solutions or manufactured on customers request.

YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Lightweight aluminium air shafts

Series PSW-F

  • Winding and unwinding of material coils like paper or film

  • Clamping bars made of aluminium, rubber-steel, solid rubber or Plastic

  • Body made of light aluminium profile

  • the shafts are designed for frequent roll changes

  • the bearing journals designed on customers requst or as a cost-effective standard solutions

  • standard diameters are  70 / 70-76.2 / 76 /100 / 125 / 150 / 200 mm

  • the continuous clamping bars are very protective to the cores

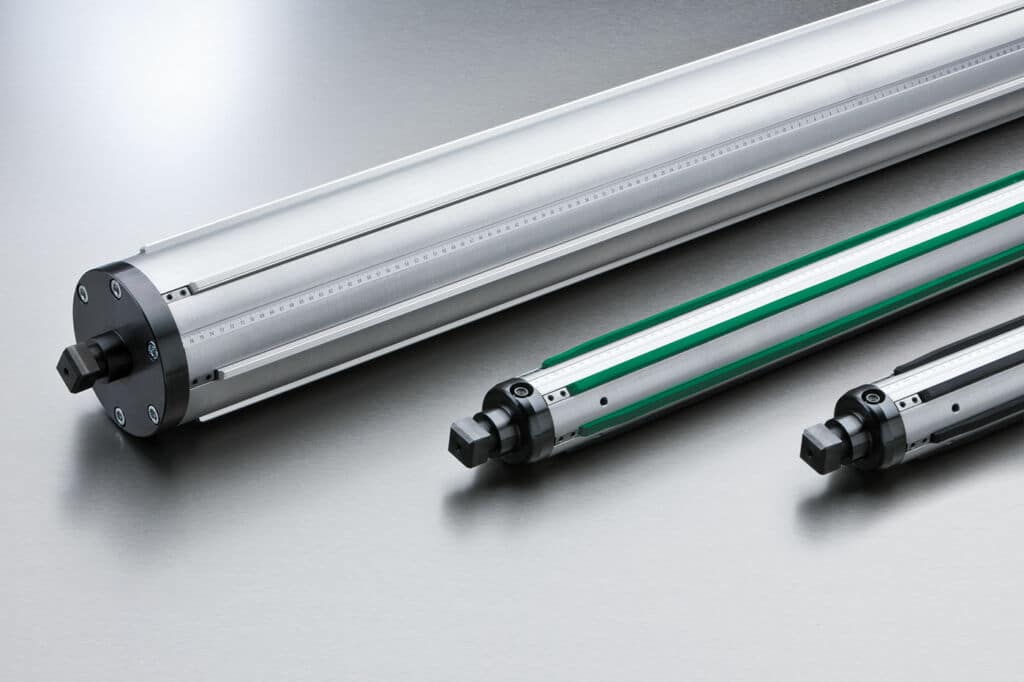

air shafts with continuous expansion bars

The lightweight aluminium air shafts is the right choice for most standard applications. It is designed for medium web tension and medium coil weight. Due to the aluminium profile design, the a
