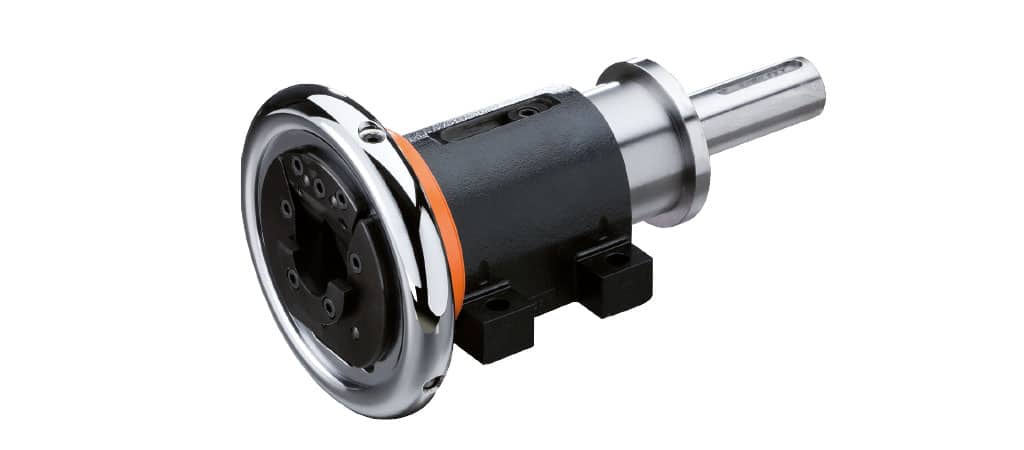

Sliding chucks – foot version with shaft end

Sliding chucks are the low-cost solution for applications which require an axial adjustment of the core during operation.



  • with „fixed“ and „moving“ shaft end for to mount brake
    and drive systems
  • axial adjustment of 50 mm and 100 mm
  • inserts:
    • square dimensions (25 – 50 mm)
    • triangle dimensions (30 – 46 mm)
  • IBD sliding chucks are available as:
    • VT-chuck with replaceable inserts
  • for shaft weights up to 3.000 kg
  • maximum torque up to 1200 Nm
  • special solutions on request
YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Start Request

Price Inquiry

Inquire online now and receive a non-binding offer in 24 hours.
Start Request
SKL 1000 SKL 1800 SKL 3000
max. shaft weight 1000 kg 1800 kg 3000 kg
max. torque 200 Nm 380 Nm 1200 Nm
± a ± 25 / ± 50 ± 25 / ± 50 ± 25 / ± 50
A [ mm ] 25 32 40
B [ mm ] 22 – 30 30 – 40 40 – 50
C [ mm ] 22 25 27
D [ mm ] 322,5 / 422,5 338,5 / 438,5 372,5 / 472,5
E [ mm ] 100 / 125 103 / 128 115 / 140
F [ mm] 90 90 80
G [ mm ] 130 130 130
H [ mm ] 110 140 160
J [ mm ] 145 168 200
K [ mm ] 18 30 28
L [ mm ] 50 55 75
Ø M [ mm ] 13 14 14
Ø N [ mm ] 160 212 235
P [ mm ] 1,5 2,5 2,5
R [ mm ] 8 P9 12 P9 14 P9
S [ mm ] 40 70 90
T [ mm ] 4 5 5,5
U [ mm ] 70 1 82 1 110
Ø V [ mm ] 28 h6 1 42 h6 1 50 h6 1
W [ mm ] 15 6 10
X [ mm ] 12 12 12
Aufnahme / adapter VT 1 • • •
Aufnahme / adapter VT 2 • 2 • 2 • 2
Aufnahme / adapter VT 3 • • •

1 Special solutions on request

2 Note: reduced shaft weigh and torque at VT 2 chuck : max. shaft weight = 80 %; max. torque = 70%
